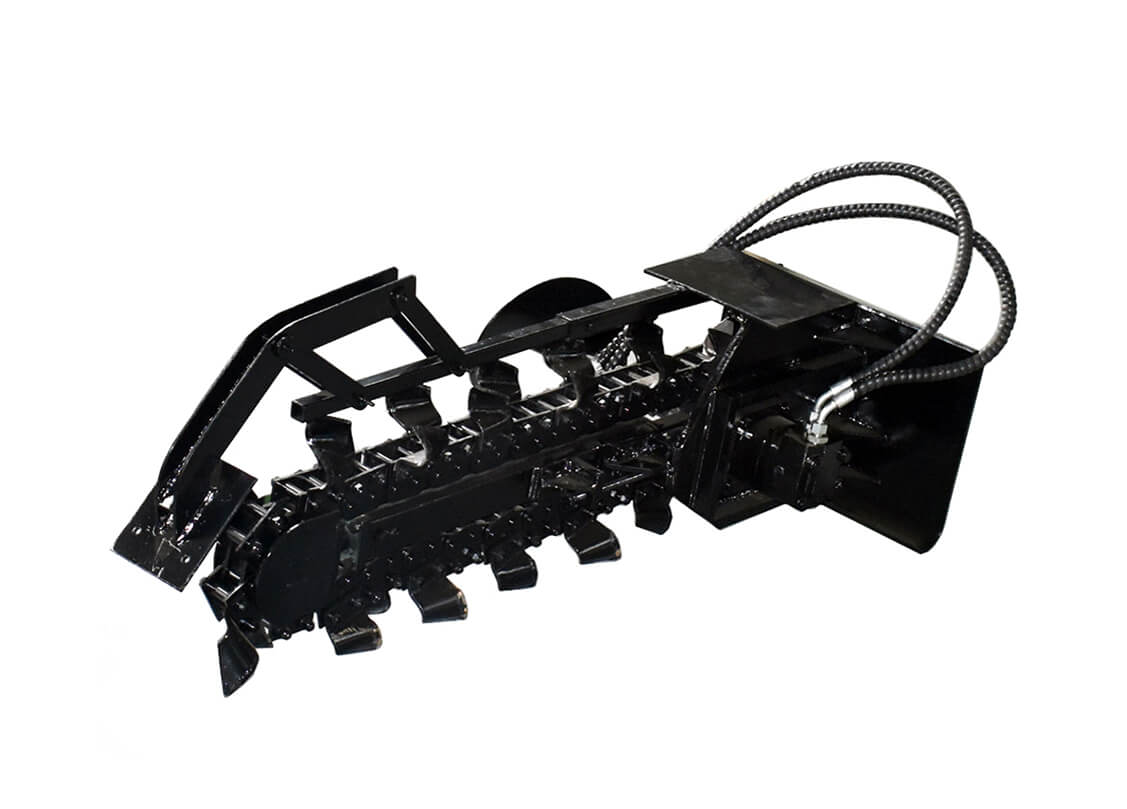

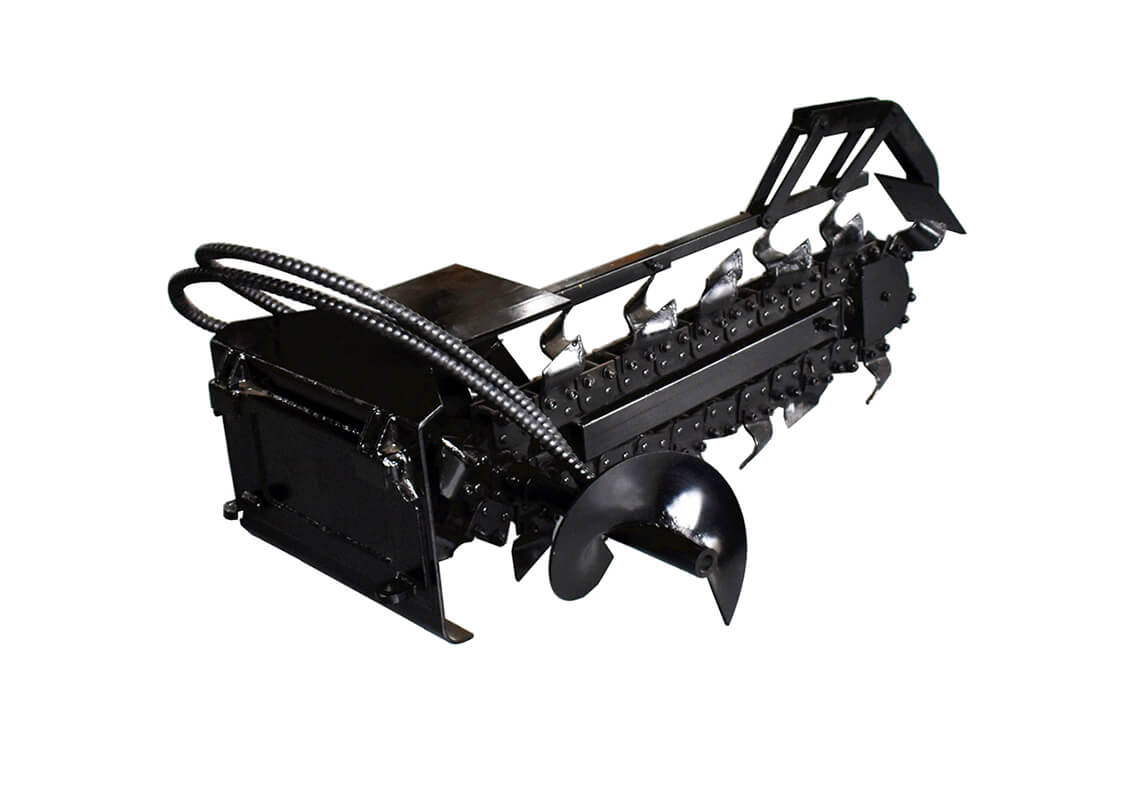

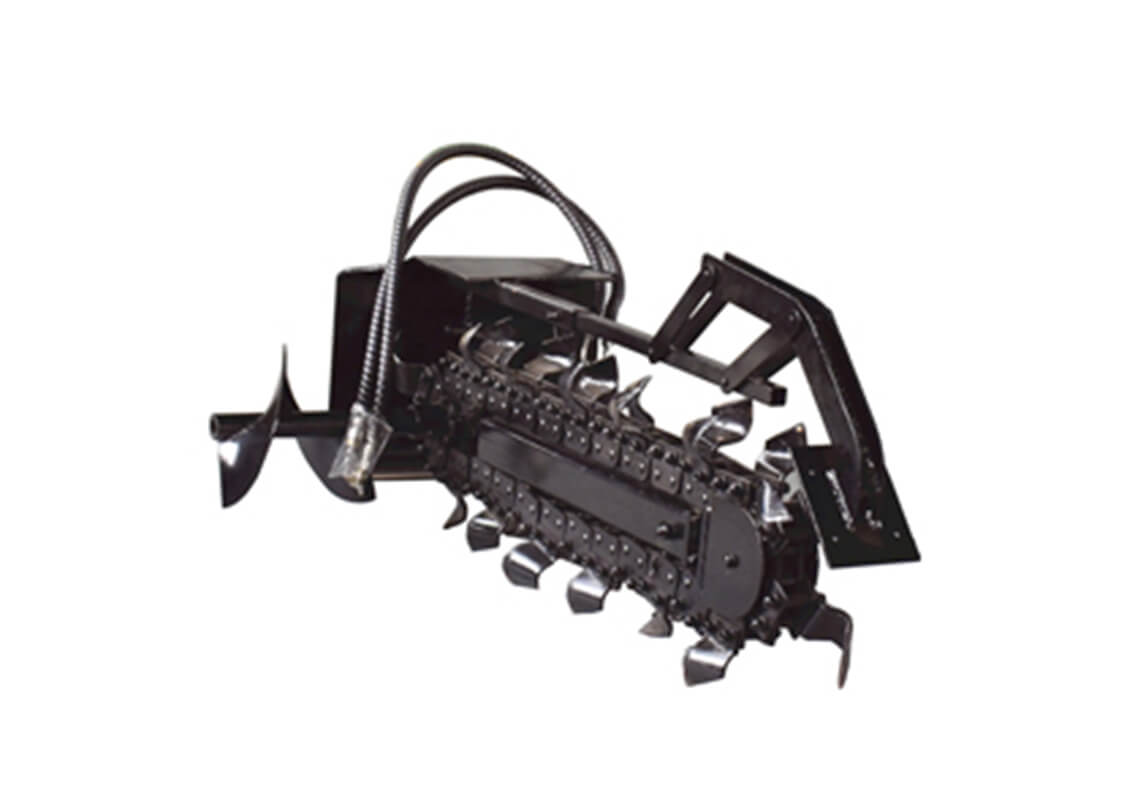

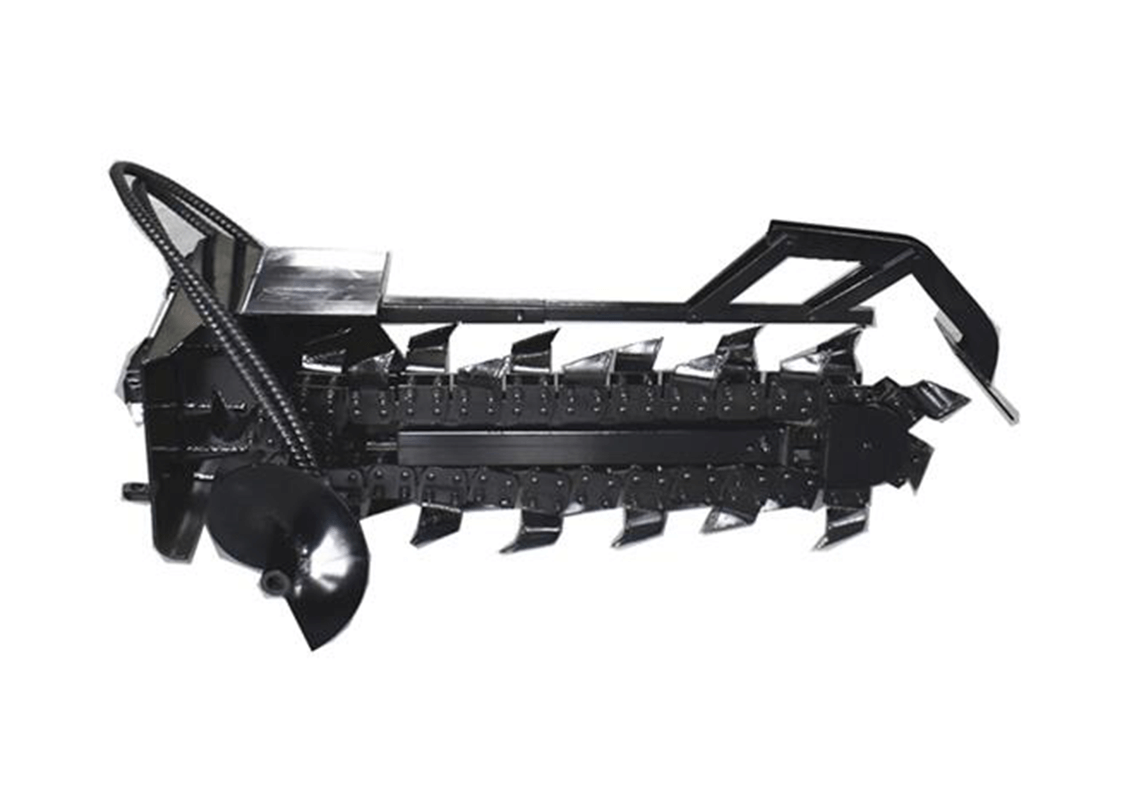

Earth trenching machine hydraulic trencher ditch witch loaders for wire laying

Zanjadora
Zanjadora
Zanjadora
Zanjadora
Zanjadora
Zanjadora
Zanjadora
Zanjadora

Características del producto:

Trencher is a very fast and clean machine to dig trenches for cables, drains, pipes with minimal damage to the ground on digging area.

It moves all digging earth to the right side of the trench, leaving almost no marks of digging operations.

Trouble free operation is assured through the planetary final drive and heavy duty hydraulic motor.

Digging speed with a trencher is 2-3 times quicker compared to a backhoe.


Parámetros del producto:

Model

Unit

SCA23A

SCA23B

Length

mm/inch

1500/60

1700/68

Width

mm/inch

900/36

900/36

Height

mm/inch

670/27

670/27

Working width

mm/inch

200/8

200/8

Working depth

mm/inch

800/32

1000/40

Suggested working angle

65

65

Weight

Kg/lbs

220/484

240/528

Compatible model


M906

M910/M915/920
